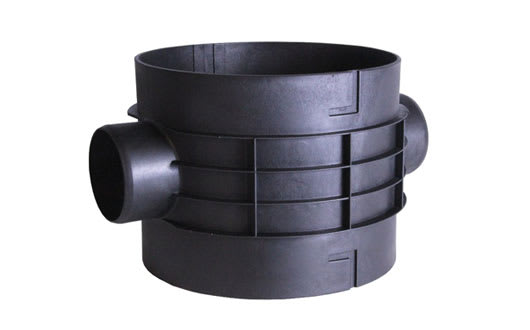

PLURAFIT Rainwater/Stormwater Inlet/Outlet 4

Rainwater/Stormwater Inlet/Outlet 4

PLURAFIT inlet-outlet accepts captured rainwater or stormwater for filtering and discharges excess water.

PLURAFIT

4″ Rainwater and Stormwater Inlet-Outlet

Sturdy and suitable for in-ground burial or wall mount.

Product information

Rainwater/Stormwater Inlet/Outlet 4
Benefits Include
  • Holds PLURAFIT filter basket
  • Two 4” pipe connections for rainwater/stormwater inlet and overflow
  • Connects to riser, which connects above and below
  • Sturdy and suitable for in-ground burial or wall mount.
  • Pipe can be extended upwards and downwards
Technical PDF Downloads
  • Drawings and Technical Data
  • Part Number: PF 300-100 Basis
  • Item Weight: 3.86 pounds
  • Product Dimensions: 12.4 x 12.4 x 9.7 inches
  • Item model number: PF300-100-Basis
  • Color: Black
Product Article Numbers
  • Item weight: 3.86 pounds
  • Product dimensions: 12.4 x 12.4 x 9.7 inches
  • Material: PP
  • Color: Black
  • Shipping weight: 4.41 pounds
  • Article number: 300000
  • EAN: 4251173101018

Product Description

The PLURAFIT 4” inlet/outlet is integral to most PLURAFIT component configurations.The inlet accepts captured rainwater or stormwater for filtering. The outlet discharges excess water and can act as a cistern overflow.

PLURAFIT components are very robust due the wall thickness, selected materials, ribbing and construction. They can be installed underground and a have vehicle rated PLURAFIT cover option.

If you would like to adapt a pre-existing PLURAFIT pre-filter, the following components are available for purchase: PLURAFIT Cover 12” pedestrian, PLURAFIT Accept Connection 4”, PLURAFIT Riser 12″, PLURAFIT Filter Basket 12″. They can be easily assembled without using any tools.
