Stackable shaft piece that can be extended to any length in 8 5/8 “increments.
PLURAFIT
12″ RainWater/stormwater Riser Extension
Can be used as collecting space, filter space or for an extension.
Product information
Benefits Include
- Extends PLURAFIT configuration in 8 5/8″ increments
- Sturdy design for in-ground or wall mounting
- Weather-proof, UV-stabilized
- Can be shortened by cutting or grinding disc
- Pipe connection can be mounted by drilling
- Can be driven over by car after appropriate ground installation
Technical PDF Downloads
- Drawings and Technical Data
Product Article Numbers
- Item weight: 3.44 pounds
- Product dimensions: 12.9 x 12.9 x 10.6 inches
- Material: PP
- Color: Black
- Shipping weight: 4.41 pounds
- Article number: 300005
- EAN: 4251173101025
Product Description

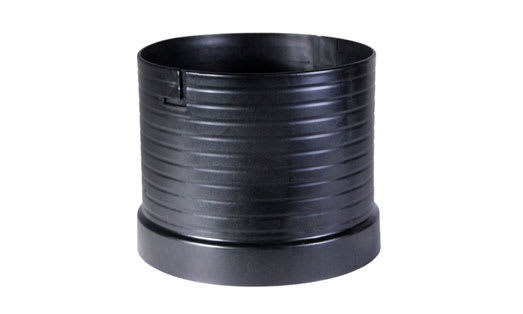

PLURAFIT Riser is a stackable shaft piece to extend from PLURAFIT filters to ground level. With each piece the shaft can be extended in 8 5/8” increments. PLURAFIT components are very robust due the wall thickness, selected materials, ribbing and construction. They can be installed underground and a have vehicle rated PLURAFIT cover option.
If you would like to adapt a pre-existing PLURAFIT pre-filter, the following components are available for purchase: PLURAFIT Inlet/Outlet 4″, PLURAFIT Accept Connection 4”, PLURAFIT Cover 12″ pedestrian, PLURAFIT Filter Basket 12″. They can be easily assembled without using any tools.
